PERFORMANCE™ EDGE® TOUCH-N-GO® THERMOSTAT TP-NHP01

Performance™ Edge® Touch-N-Go® Thermostat TP-NHP01

Intelligent System Management in a Sleek Design

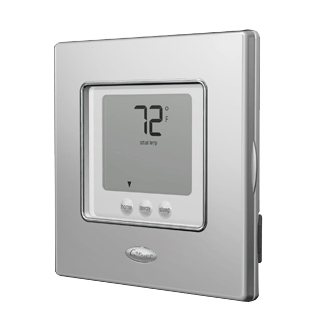

This versatile and beautiful Edge thermostat can manage any Performance™ or Comfort™series system. Its slim, wall-hugging design1 gives you up to seven faceplate color options so you can customize your look.

It allows simple, Touch-N-Go programming for one-button, energy-saving, quick settings when you’re on the go or ready for sleep.

It’s capable of managing temperatures, ventilation, airflow and indoor air quality. This model is configured for systems using a heat pump for cooling and seasonal heating.

1 Display module is .8″ deep and can be attached directly to the wall when its control module portion is installed on furnace or fan coil.

Standard Features

  • Intuitive, on-screen prompts
  • One-button Touch-N-Go quick-settings-change feature
  • Large, illuminated display shows inside and outside1 temperatures and time
  • Comes with attractive silver faceplate
  • Intelligent, heating- and cooling-comfort staging capable
  • Auto changeover between heating and cooling
  • Ventilation management capable
  • Fixed-schedule based filter, UV lamp and/or humidifier panel replacement reminders
  • 10-year parts limited warranty2

Optional Features

  • Individual faceplate options in gold luster, saddlebrush, onyx, espresso, natural grain and quartz colors
  • Wall hugging profile achieved when equipment control module portion of the thermostat is mounted to the furnace or fan coil
  • Application of remote sensor to feed information to the main control from a different location
  • Outdoor Air Temperature (OAT) sensor
  • Compatible with 3-zone panel systems: ZONECC3ZHP01 and ZONECC3ZAC01

1 Depending on system, may require outside sensor installation.

2 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
